All Y Axes are listed in the right side in the properties, under section Y Axes :

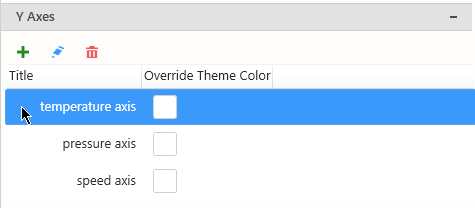

Chart Yaxes list edit

Managing the list of Axes

Adding

By default, only one Y Axis exists, named after the first Y Value Series field.

Click the + icon to add a new Y Axis.
This opens the Edit Axis configuration pop-up window to let you configure this new Y Axis.
See below for Configuring.

Editing

Click the pen icon to edit the currently selected Y Axis.
This opens the Edit Axis configuration pop-up window to let you configure this Y Axis.
See below for Configuring.

Removing

Click the trash icon to remove the currently selected Y Axis.

Binding a Series to a Y Axis

When a new Y Axis is created, no Series are bound to it.
To bind a Y Value Series to a specific Y Axis, see Series Settings.

Y Axes Properties

Title

The Y Axis Title can be customized of hidden :

Chart Yaxes Title configure

Chart Yaxes Title runtime

Color

By default, the Labels and Title colors are based on the Theme.
If you want to set a specific different color, check Override Theme Color and set the desired color :

Chart Yaxes Color configure

Chart Yaxes Color runtime

There is also a shortcut in the list of Y Axes :

Chart Yaxes Color configure 2

Grid Lines

Grid lines can be hidden or displayed with Show Grid Lines :

Chart Yaxes GridLines configure

Chart Yaxes GridLines runtime

Value Type

By default, the Y Axis Type is “Numeric” : this means that the Y position of points directly maps to the numeric value of the Y Value Series data field.

The Type “Logarithmic” can also be selected : this means that the Y position maps to the logarithm of the Y Value Series data field.

For example, here is a simple chart with Y Axis as “Numeric” (default) and X Axis as “Category” (default) :

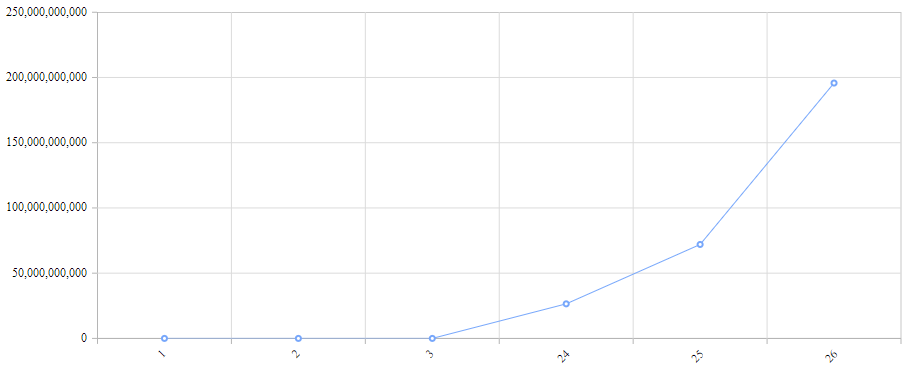

Chart Yaxes Type Numeric runtime

The variations happen on many orders of magnitude, and it’s difficult to track what is the real trend.
With a “Logarithmic” Value Type of the Y Axis, and Numeric for the X Axis, we see that the trend is exactly exponential :

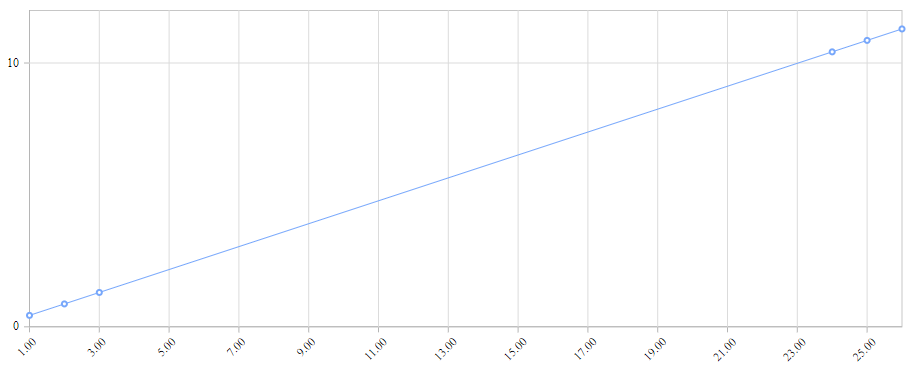

Chart Yaxes Type Logarithmic runtime

Force Axis To Start at 0

By default, the minimum and maximum value of the Y Axis is automatically calculated to scale to the data displayed.
Instead, you can force the zero to always be included on the Y Axis.
This is useful for example if you want to display absolute variations compared to the total value.

To enable this behavior, check Force Axis To Start at 0 :

Chart Yaxis scale 0

Custom Range

By default, the minimum and maximum value of the Y Axis is automatically calculated to scale to the data displayed.
Instead, you can force a Custom Range :

Chart Yaxes Range configure

Custom Interval
We can customize our steps between each data point

Range padding

Padding can be applied to minimum and maximum values for a given range.

  • None: Minimum and maximum is based on data
  • Round: Minimum and maximum will be rounded to the nearest possible value divisible by interval.
  • Additional: Interval will be padded to the minimum and maximum of axis.
  • Normal: Padding is applied to the axis based on default range calculation
  • Auto: Horizontal numeric axis takes None as padding calculation, while the vertical numeric axis takes normal as padding calculation.

Position

Each Y Axis can be positionned to the Left or Right :

Chart Yaxes Position configure

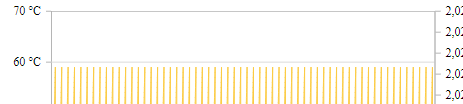

Chart Yaxes Position runtime

Hiding the Axis

All the Y Axes can be hidden by un-checking the Visible box.

Chart Yaxes Visible
